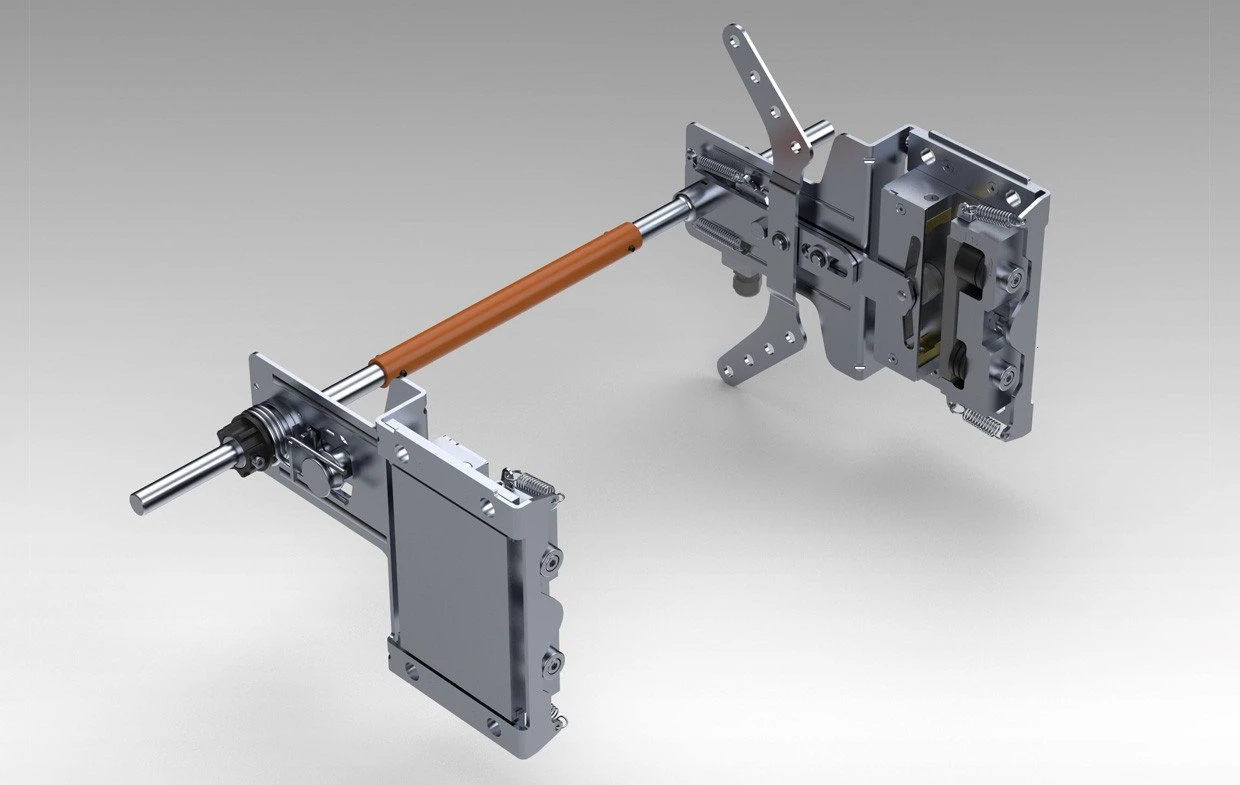

Can Lift CL-SG-P-B/U-T111 Bidirectional and Unidirectional Progressive Safety Gear

  • Electronics
  • Can Lift CL-SG-P-B/U-T111 Bidirectional and Unidirectional Progressive Safety Gear
Can Lift CL-SG-P-B/U-T111 Bidirectional and Unidirectional Progressive Safety Gear
Can Lift CL-SG-P-B/U-T111 Bidirectional and Unidirectional Progressive Safety Gear

Can Lift CL-SG-P-B/U-T111 Bidirectional and Unidirectional Progressive Safety Gear

Description

Can Lift CL-SG-P-B/U-T111 Bidirectional and Unidirectional Progressive Safety Gear

Reversed-rail mounting type with straight lever. For guide rails installed in reverse orientation.

Maximum speed: 2.5 m/s.
Maximum P+Q: 4150 kg.
Guide rail thicknesses: 9 / 10 / 14 / 16 mm.
Synchronizing tube: 3/4-inch natural gas pipe.

Manufacturer installation note: The direction arrow must point upwards. Remove the protective oil from the guide rails before the first car movement.
